使用用途与详细资料：Purpose and introduction

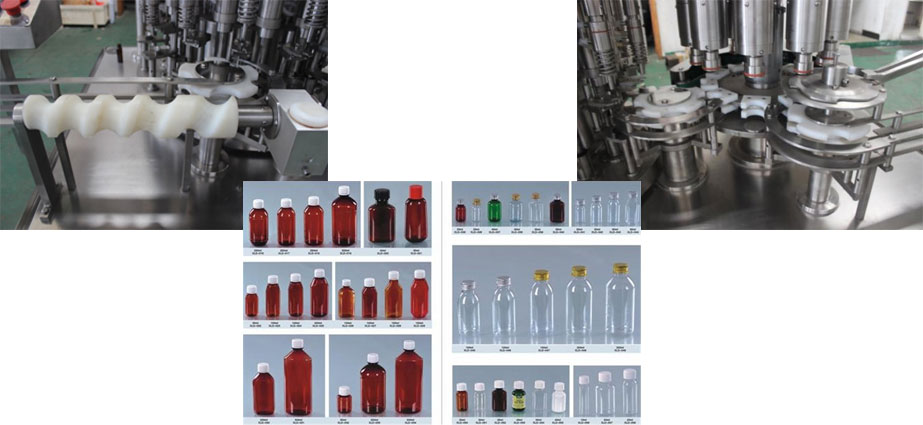

滤油机常用作对30-500ML国产波璃瓶、pp朔胶饮料瓶的包装封膜。应用往来账往来式发动机活塞来包装，磁感应振荡器送盖，能够 轧盖(重金属式)或旋盖(pp朔胶盖)封膜，能够 和前后轮的生育销售工艺流程装备连接方式分为生育销售线，前者能够 选购指南百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优势特点：characteristic

装量更准确，杜尽渗漏。缺瓶不装罐。 交流变频可控硅调压。 自觉展现记数功较。 设备均按GMP符合要求设汁。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技能运作/technical parameters：

型号 model	NQGX30-500
符合的规格Cutting dimension	30-500ml
生产性能Production capacity	80-200瓶/分（罐/15分钟）80-200 bottles/min (cans/min)
灌装生产线计算精度 Filling accuracy	≤±1%
主机电源 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机械性毛重 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
