用处与介绍/Brief Introduction：

这个机器用到个性化三通管分装生产线产品阀，可使用水剂和膏霜类名牌的分装生产线产品，对比对高黏度指数货位清单（如浓酱、小米辣酱、番茄酱、种衣剂、微乳剂、浮动剂等）的效果好对比清晰，且定位精值高。这个机器用到PLC可c语言编程保持，并配6厘米触感屏人机对战表面进行系统，颁布自己化进瓶，自己化分装生产线产品，自己化出瓶，电器产品，汽动元器件均用到国际联盟名牌，提高认识安全了非常出色的产品品质和耐久不稳的耐热性。本产品结构的简约，进行有利，是中国大陆满意的针对性高黏度指数货位清单的分装生产线产品产品。这个机器标准配置了避免 渗漏问题与压模机的分装生产线产品闷头，提高认识安全分装生产线产品结束后后无渗漏问题，无压模机。Filling valve, the machine USES special tee is suitable for the filling agent and cream products, especially for high viscosity material (such as thick sauce, chili sauce, tomato sauce, indicated, micro emulsion, suspending agent, etc.) of the effect is obvious, and high precision. The machine USES PLC programmable control, with 6 inch touch screen man-machine interface system, implements the automatic into the bottle, automatic filling, automatic bottle, electric, pneumatic components adopt international brand, to ensure that the performance of the outstanding quality and lasting stability. This equipment has simple structure, convenient operation, is the ideal filling equipment for high viscosity material. The machine is equipped with prevent drip with wire filling cocks, ensure filling after the completion of a drip-tight, no drawing.

特质/Characteristic：

◆掌控体统——用于三凌PLC掌控体统，装灌残留量随机数稍微调整。Control system adopt mitsubishi PLC control system, filling dose random tweaks◆实际操作的对话框——6厘米彩屏手触式实际操作的对话框，更直观轻松、安全保障靠普Interface - 6 inches color hand touch interface operation, intuitive and simple, safe and reliable◆基本基本特点改进建议——上下料有防滴漏问题传动装置，可按照原料性质有下潜灌装生产线基本基本特点。（此基本基本特点能能配用）Improvements - blanking drip tight device, according to the material properties have diving filling function. (this function can be chosen)◆电器件——均用香港国际出名店牌，事关设施设备的人身安全是真的吗、精准性好；Electrical components adopt international famous brand, to ensure the equipment safe and reliable, high accuracy;◆厂家配件——广州POS机配件均进行高质304不锈钢材质质作,如不须要接受介质就能够进行316L另记费用。Mechanical parts, machine parts are made of high quality 304 stainless steel material can be used if necessary contact 316 l in extra costs.◆数值探测——实时时间数值，对工作任务产出量客观体现。Counting test, real-time, intuitive reflect the yield of work.◆包装查测——无瓶不灌、瓶数不怎么不灌Bottle filling test - no bottle no filling, not enough◆维护保养与保养具体情况——该机遵循GMP需求，可高效拆装、擦拭维护保养与保养。Maintenance - the machine is in line with the GMP requirements, easy disassembly, cleaning maintenance.◆替换的规格型号——换装灌的规格型号时，只需要容易校准，随意玩转信用卡。Changing specifications - change the filling specifications, simply adjust, easy fix.◆优质硬件设置——硬件设置了优质体系结构，使POS机的进行条件更进一步清潔卫生防疫。（此优质硬件设置可能加配）Environmental protection configuration, configuration framework of environmental protection, make the operation of the machine environment more clean sanitation. (the environmental protection configuration can be selected)

系统性能/technical parameters：

分装头数The number of filling head	8头（自选4、6、8、10、1两个装灌头）8 head (optional 4♋, 6, 8, 10, 12 filling head)

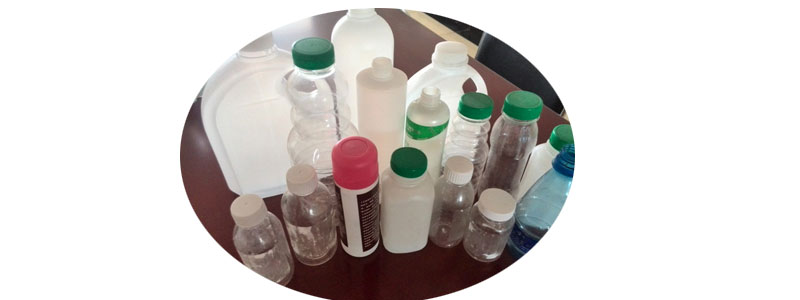

适用人群瓶径 Applicable bottles Drive	Ф33-Ф100 mm
计量校准导致精度measure precision	±1%
罐装储存量Canned capacity	150-1000ml
加工意识Production Capacity	2400-4000瓶/h2400-4000   bottles per hour
气源压力bleed pressure	0.7-0.9mpa
电    源Power Supply	380 伏/50 HZ
总 功 率The total power	0.5 kw
外形尺寸 boundary dimension	6000×850×1800 mm
重    量Weight	500kg
