应用领域与概况/Brief Introduction：

滴注用热水主设施滴注用热水是纯化水经减压蒸馏所得的，病菌内毒物等公式均达到国家药典滴注用热水项下标准规定的水体需要，能以过活物制药业中小型企业中各种一直滴注入人體内类药物的高沸点溶剂。滴注用热水主设施主耍是其中包括滴注用热水化学合成、嵌套循环处理、gif动态计算和加工过程管控等主耍是信息模块。

优点和缺点/Characteristic：

◆全自然运营办法，必免人员管理误运营创造的研发折损；Automatic operation mode, to prevent losses of wrong operation of production;◆组件用316L材质原料；Components in 316L texture◆带PLC控住的CIP食品；CIP products with PLC control◆记录好与留存清洁进程的技术指标与步聚；Record and save the parameters of the cleaning process and steps◆考虑GMP耍求的可溯源性与言说明性； Meet GMP requirements traceability and accountability◆一身化结构设计有效节约使用房间；Integrated design can effectively save space◆保证 生产方式和保养的高效就能；Implement production and clean fast switching◆巴氏清洁臭氧消毒，清理更恢复原状；Babbitt disinfection sterilization, cleaning more thoroughly◆多效萃取机：该机压缩空气管链接都是用于了自行焊结，按卫生管理级条件，管道阀门用于了快卡链接，杜决了注塑开水的分次污染问题；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯压缩空气出现器：PLC电脑操作方法管理工具栏，可0-100%系统自动调高至要有的总产量想要；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无方位设定：注射液体需要用水控制程序洁净室导压管需要满足GMP3D规范，胶垫为PTPE/EPDM，隔阂阀标准重新装设时为90度，不断反复的管路重新装设设为0.5的纵坡，设底点为排放出点,同时以湍液环境不断反复的外溢的低温干燥和传输控制程序，以防微生态学的滋生腐败；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆全版的档案格式格式程序：①档案格式格式适合GMP标准要求；②装置机械自动化把握程序可适合GAMP5；③3Q档案格式格式拥有医药集团厂印证的所需。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆合理配置高耐热性交流变频泵加以卸料和划分接种饮用水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板传热器，在纯化水长时候循环法步骤中产生加热效果。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆肌内注射用纯净水贮罐最优通过直列V型贮罐其二立式贮罐，实现输送管泵水位高低特殊要求，专业配置罐中气速解决生物技术膜转变成。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆运用80℃以上的保热巡环设计，放到纯净水操作系统枯草芽孢杆菌工程形成和被污染的。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆配置导电连接饱和蒸汽采暖器（饱和蒸汽饱和蒸汽采暖器）心脏跳动筛选器。Equipped with electric heating, steam heating) breathing filter◆罐底溢水头加设锥型挡条以拉大采池底，放到涡流效应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐应用主要采用氦气自我保护，维系医药用水的贮藏及分配比例软件负压，放到内部循环环保问题。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆化工水输送机泵用316L冷库保温隔热板的表层手工制造（浸水的部分），电增加光泽并钝化办理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

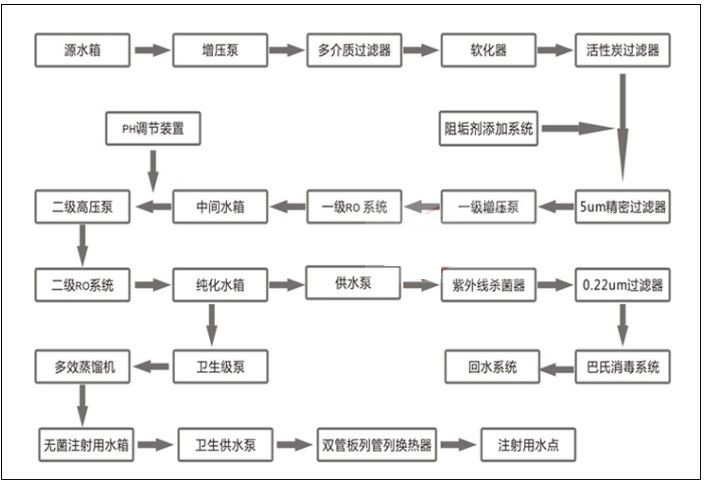

三、模式技术程序流程表
