主要用途与详细资料/Purpose and introduction

该生产方式线由理瓶机(上瓶台)、多普勒彩超波洗瓶机，灌装主设备(旋盖)加塞机，轧盖机，标贴纸机等主设备主成On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

特征 /characteristic：

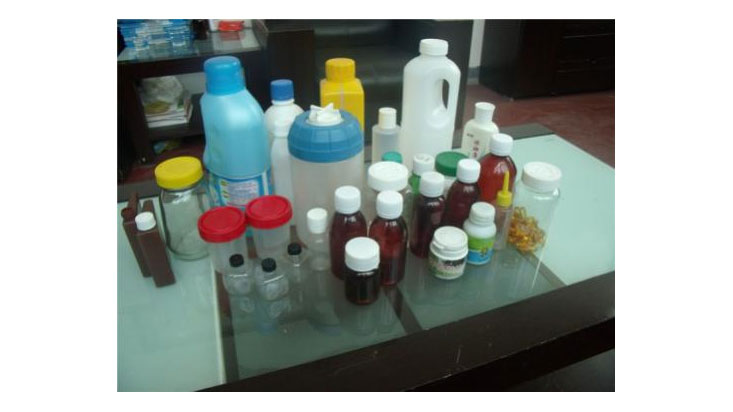

该产生线时候于 30-500ml一系列新产品的分装加塞封膜，根换某些标准机床后，既时候于朔料瓶，也时候于玻璃板瓶。拥有适应环境时间范围大量，更改简便的的特点。整线产生性能；适瓶盖长宽图行，刚体107硅橡胶粘度而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

技术应用运作/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶净化后的度Washing bottle cleanliness(%)	> 99
装量误差值The load error(%)	0-2
上塞完成率Plug on the percent of pass(%)	> 98
轧盖达标率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
