用处与简洁：/Purpose and introduction

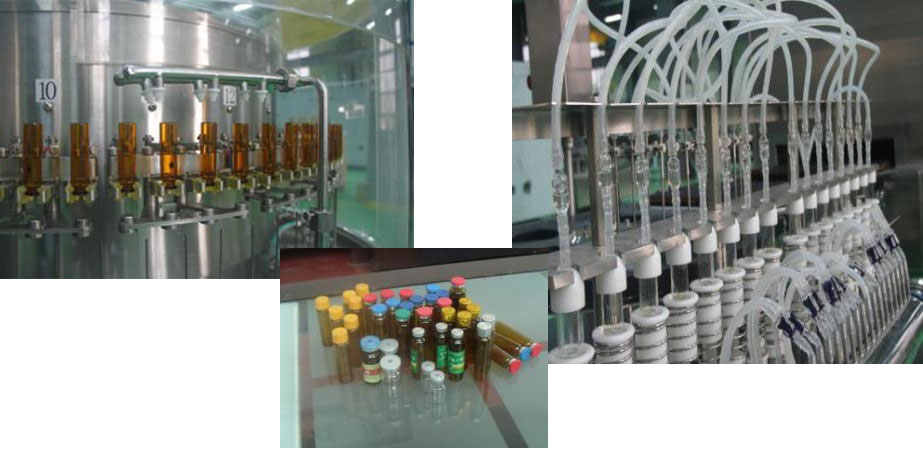

口服药方式药液洗烘灌轧一体化线由落地mri波洗瓶机、隧道口式暖风 重复消毒烤箱、口服药方式药液包装轧盖机等组成了，适于于 5-30ml 等各不相同规 格口服药方式药液瓶的研发制造。可达成对处方药研发制造中安瓿瓶淋水、mri波拆洗、冲水、充 气、风干消毒、水冷却、包装、轧盖等技术进行的一体化运动。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特色:/characteristic

◆洗瓶机用机制手夹瓶，常用多种多样规格为的可乐瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶选取水汽喷针回转式追踪定位放入方式英文，除污疗效好，省燃料。并均有针架防晃动部件，增进喷针放入空瓶的较准度，以减少断针情况引发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整个的气水蒸汽管道、喷针是自由拆开，防范了交错式水污染，契合GMP规范化规定；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前装个抗震块，有保护英文罗杆，提高碎瓶影响Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用于整体化入口此次带，无线连接拨块输料补血口服液液，运作维持安全In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烤箱采取红外线供暖管，不锈钢装饰管吗供暖管两层供暖气温不光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装设备轧盖机可以选择配瓷砖泵、304不锈钢泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖性能。Pieces filling without bottle filling, no bottle no rolling function.◆整线利用PLC总控住、变频式器、触控屏控住水平，开机加载不稳能信。触控屏可界面展现各单机联机的开机加载状态下下，各控住点的出水量、大气压力、风压差、温差等界面展现，各开关按钮状态下下和洛天依界面展现，洛天依自身初步判断和洛天依阐述及除掉方法步骤。使整分娩环节达到自己化控住，联线还具有三机自动化平横传动装置，能保证分娩均衡教育能信。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.只能根据合作方的要有，还可供配搭：According to the needs of customers, but also available for selection:◆PLC、斯耐德、西门子、台达等厂家设定系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气心理压力、油温及多普勒彩超波強度、颗粒再生颗粒、风压百度在线检查、报警信号、記錄、打印出系统的。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无茵隔离防晒器操作系统。Mixer ORABS, CRABS, aseptic isolator system.

技术工艺参数值：technical parameters

适用性标准Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
分装高精准度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖通过率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
