领域与百度百科/Brief Introduction：

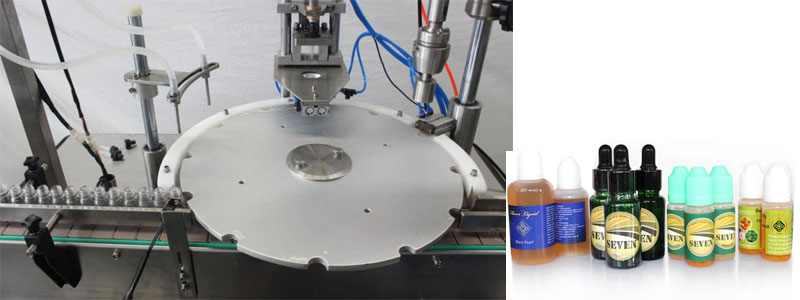

该机符合于2-30ML一些所选材质的圆型扁形可塑料或玻璃纸瓶的眼灵药罐装.该机由高准确度气缸学校量程学校作为量程等分盘准确追踪定位上塞上盖;1度气缸学校传动系统链作为旋盖头的什降;恒扭力旋盖;胃排空泵收费罐装;触模屏保持.无瓶不罐装,不加以内塞,外盖.具准确追踪定位准确,传动系统链保持稳定,养护酒盖,收费准.运营简单易行等优点有哪些。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特质/Characteristic：

◆微PC选用、装量明确、进行便利。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆机箱电机转速可使用有级交流变频控速。the mainframe running speed is stepless frequency conversion.◆工作量手动化学发光法调整。the product quantity can be controlled. ◆不同常见故障报错功能模块(如低压力。无灌装生产线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自功断电性能，对指定导轨出来连着无灌装设备、无内塞现状可自功断电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术水平参数表/Main Technical Parameters：

不适用型号规格Filling Volume	2-30ml
生产方式效率Productivity	30-60瓶/分  70-100瓶/分3𒐪0-60bottles/min    70-100bottles/min
罐装表面粗糙度Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
电脑自动上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
工作功率 Power	2.0 kw
器机重量Weight	550 kg
外观简约时尚的尺寸Dimension	1800*1000*1500mm
