主要用途与详细介绍/Brief Introduction：

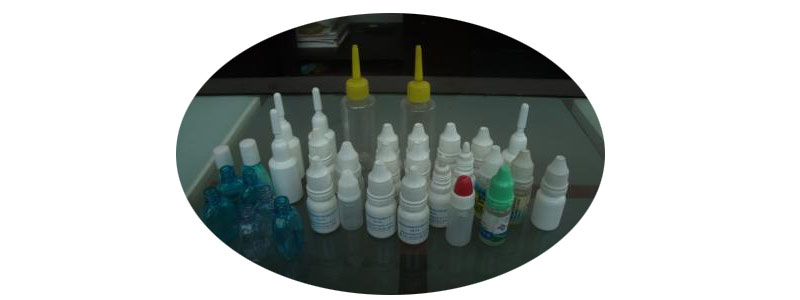

超声波焊接机常于2-30ML各式各样板材的方形扁形塑胶板材或窗玻璃制瓶的眼灵药装罐、电商烟油等小服用量装罐.超声波焊接机由高精密度凸轮机构轴测量范围设备出示测量范围等分盘固定上塞上盖;加快度凸轮机构轴传动装置齿轮出示旋盖头的升降架;恒最大扭矩旋盖;运动泵收费装罐;液晶屏屏有效控制.无瓶不装罐,没有加内塞,外盖.具固定小于,传动装置齿轮平静,保养瓶子,收费准.方法简洁明了等缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微台式电脑设置、装量精密、运营方便快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱速比可参与无级变速变频式调速器。the mainframe running speed is stepless frequency conversion.◆生产销售量自动式酶联免疫法操作。the product quantity can be controlled. ◆许多种出现问题的提示卡性能(如低空气压力。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆主动关机实用功能，对同一个道路导致多次无灌装线、无内塞事情可主动关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

工艺参数设置/Main Technical Parameters：

应用标准Filling Volume	2-30ml
工作功能Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装生产线精度等级Filling Precision	≤±1%
电源模块 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自行上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
最大功率 Power	2.0 kw
机械设备毛重Weight	550 kg
形状长宽比Dimension	1800*1000*1500mm
